| Plaats van herkomst: | Shenzhen in China |
| Merknaam: | SCXK |
| Certificering: | CE/ROHS/FCC/ISO/UL |
| Modelnummer: | P4.81 |
| Min. bestelaantal: | 5 m² |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Vluchtcase, houten kast, doos, het is aan jou. |
| Levertijd: | 7-10 werkdagen na ontvangst van uw betaling |
| Betalingscondities: | Western Union, MoneyGram, D/P, T/T, L/C |
| Levering vermogen: | 5000 m² per maand |
| Pixels: | 4,81 mm | Buisschipkleur: | Volle kleur |
|---|---|---|---|
| Weergave -functie: | Video | Kastje: | Staal of aluminium voor opties |
| pixelconfiguratie: | 1R1G1B | Garantie: | 3 jaar |
| Merk: | SCXK | Spanning: | DC5V |
| Markeren: | P4.81 LED display panel,indoor LED video wall,church rental LED screen |
||
| Parameter | Value |
|---|---|
| Lamp size | 2121 |
| Resolution/mm | 4.81 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64*64 |
| Module size/mm | 250*250 |
| View distance | ≥4.81m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

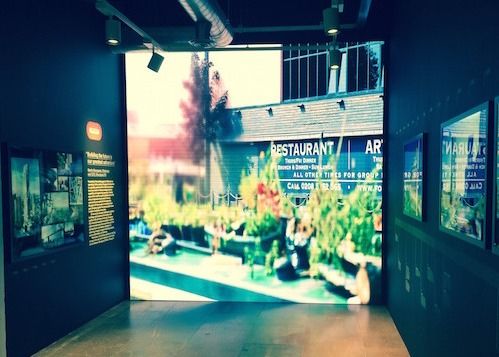

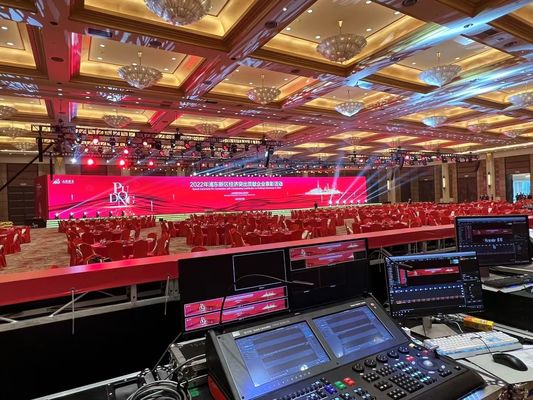

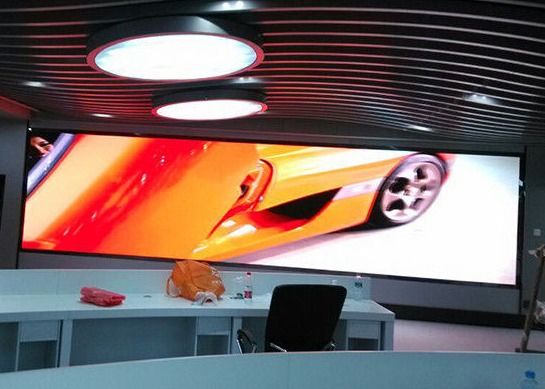

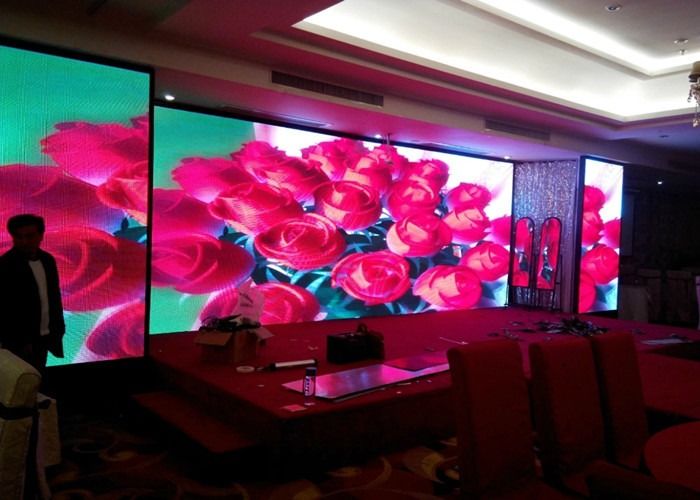

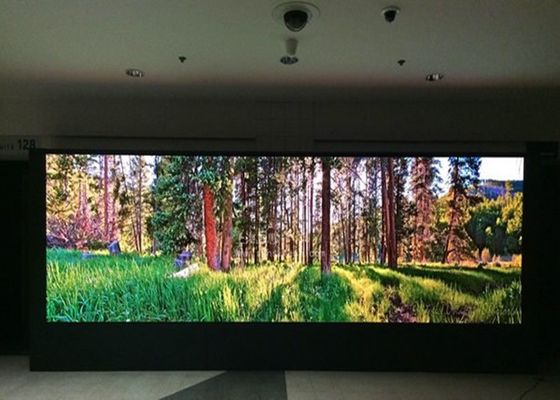

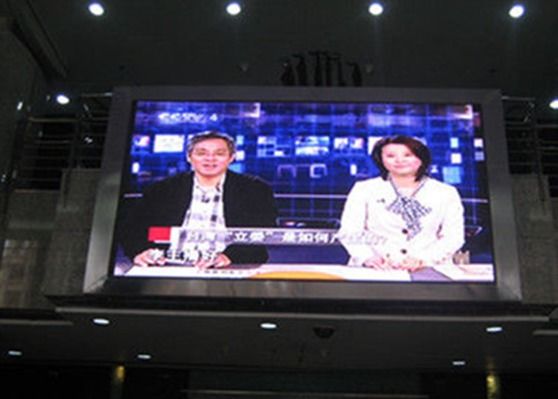

LED display can be widely used in advertising, multi-media, stadium, stage, rental show, transit directions, etc.
Our team will be forever here to offer you full supports!
Contactpersoon: Susan_zhang
Tel.: +8618344159301
