Name: P10 Outdoor Stadium LED Display 5000nits IP65 10mm Pitch
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Thuis Producten Stadion LED Display

P10 Outdoor Stadium LED Display 5000nits IP65 10mm Pitch

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	SCXK
Certificering:	CE/ROHS/FCC/ISO/UL
Modelnummer:	P10

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	sqm 3
Prijs:	Onderhandelbaar
Verpakking Details:	Vluchtcase, houten kast, doos, het is aan jou.
Levertijd:	7-10 werkdagen na ontvangst van uw betaling
Betalingscondities:	T/T, Western Union
Levering vermogen:	5000 m² per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	P10 Gemakkelijk te installeren LED-scherm voor buitenstadion	Stroomvoorziening:	200 W/m2
helderheid:	5000 nits	Bescherming van bescherming:	IP65
Pekgrootte:	10 mm	Levensspanne::	100000 uur
Moduledimensie:	320 mm*160 mm
Markeren:	P10 outdoor LED display 5000nits , stadium LED screen IP65 , 10mm pitch LED display waterproof

5000 Nits Led Perimeter Advertising Boards P10 Easy Installation For Soccer Stadium

P10 Easy Installation Outdoor Stadium LED Display Screen For Soccer Stadium

Technical Specification

Parameter	Specification
Model	Outdoor SMD P10
Resolution	10mm
Pixel configuration	1R1G1B
Pixel density	10000/m²
Module resolution	16x16
Module size	160x160mm
View distance	10-300m
Brightness	>5000cd/㎡
Refresh frequency	>4200Hz
Working temperature	-20°C to 45°C
Lifetime	100,000 hours

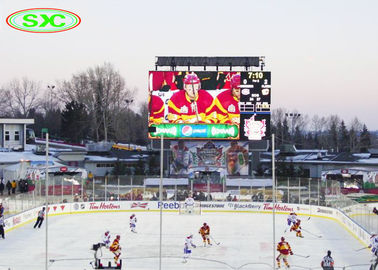

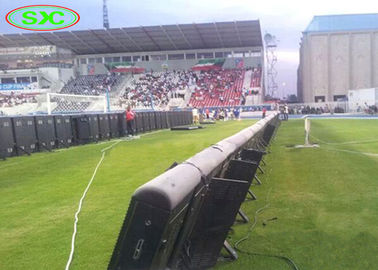

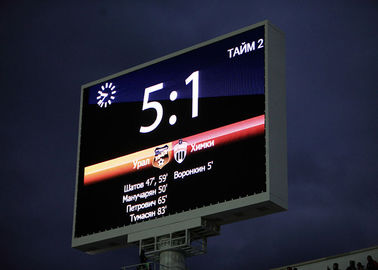

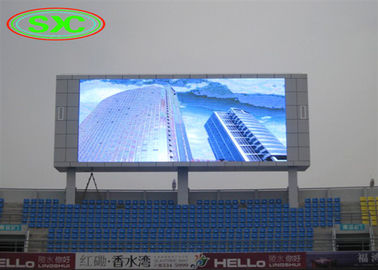

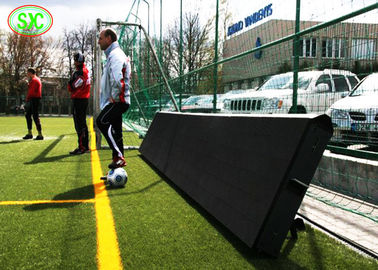

Sports Facility Applications

Display player information and real-time game status with large, clear screen broadcasting
Integration with referee and scoring systems for real-time game updates
Slow motion replay capability for referee decisions and highlight moments
Commercial advertising broadcast with perfect picture quality and sound effects

Core Technology Advantages

Single-pixel correction technique for perfect white balance
Automated color calibration with precise color temperature adjustment
High refresh rate up to 2000Hz to prevent stroboscopic effects
Professional sports player software with fiber-optic transmission for minimal delay

Production Process

1) Incoming Inspection

2) SMD

3) Plug-in

4) Wave Soldering

5) After Welding

6) Testing

7) Semi Finished Aging

8) Module Assembly

9) Gluing

10) Finished Aging

11) Detection Finishing Warehousing
