De Elektronikaco. van Shenzhenshichuangxinke, Ltd
de beroeps maakt goede kwaliteit, verleent perfecte product en de dienst voor elke klant.

|
| Place of Origin: | Shenzhen in China |
| Merknaam: | SCXK |
| Certificering: | CE/ROHS/FCC/ISO/CB/UL |
| Modelnummer: | P8 |
| Minimum Order Quantity: | 3 pcs |
|---|---|
| Prijs: | Onderhandelbaar |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/P |
| Supply Ability: | 5000 sqm per month |
| Pixel pitch: | 8mm | Led Type: | SMD2121 |
|---|---|---|---|
| Waterdicht: | IP65 | Cabinet: | die catsing aluminum or Iron |
| MBI: | 5024 | optimal viewing distance: | >=8m |
| Spanning: | DC5V | brightness: | more than 5000cd/㎡ |
| LED parameter: | R:625-630nm | module: | 320*160mm |
Outdoor digital comercial advertising P5 P6 P8 P10 LED screen/led display billboard
♦ About our company
1. SCXK LED, as a professional manufacturer of LED Display and led street light in China, our products have exported to more than 50 countries and made 700 projects all over the world.
2. We are specialized at providing solutions for commercialadvertising, stage rental and sport led banner.
3. For the commercial led display, we offer 8 years warranty.
4. We have subsidiary in USA and close distributor in Finland, Cambodia, South America and Australia and UK. In the future, we will develop more subsidiaries in our sales area.
♦ Technical specification
| Outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 40x20 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | 8-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >5000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >4200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-55℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

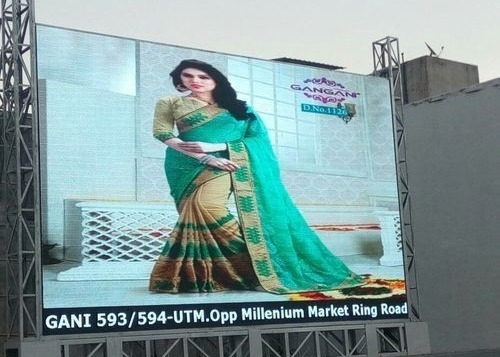

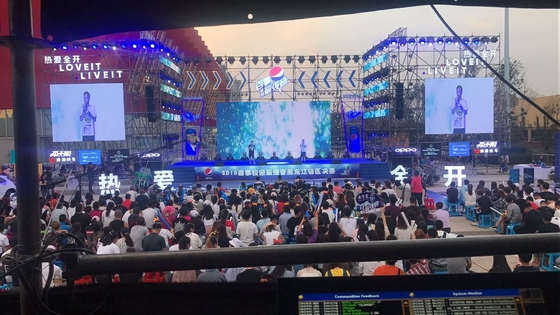

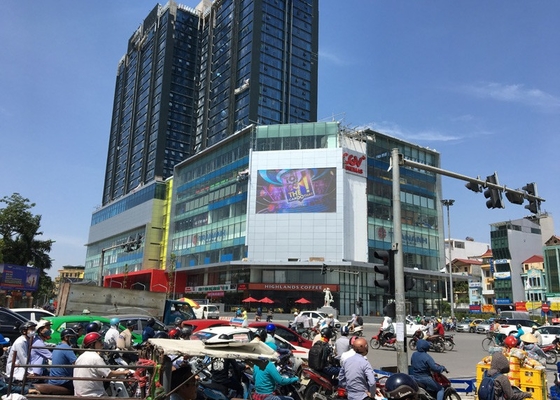

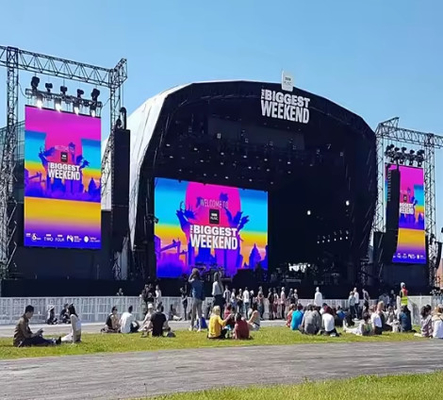

♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
